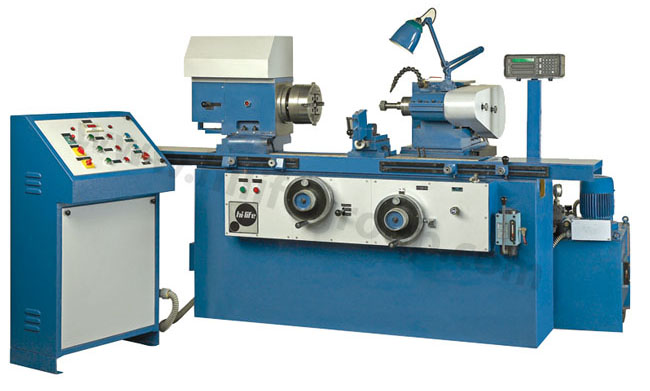

Internal Bore / Track Grinding Machine
OPTIONAL:
- Diaphragm Chucking System
- Automatic Grinding Cycle
Specifications
| SPECIFICATIONS | ||
| Centre Height | mm | 180 / 240 |
| Max Grinding Diameter (bore) | mm | 100 / 200 |
| Table Speed infintely variable | m/min | 0.1 - 4 |
| Max. Table Stroke | mm | 250 / 500 |
| Internal Grinding Spindle Dia | mm | 60 / 80 / 100 |
| Spindle Speed | rpm | 18000 / 28000 / 12500 |
| Grinding Wheel Motor Power | hp | 3 / 5 |
| Work Head Speed (stepless) | rpm | 20 - 650 |
| Work Head Swivel | deg | 0 to 30 |
| Rapid Approach / Auto Retraction | mm | 3 - 10 variable* |
| Auto Spark off time | sec | 0 - 60* |
Highlights:
- "HI-LIFE" Internal Grinding machines are suitable for Tool-room as well as production applications like Bearing race, Auto components grinding etc.
- These machines deliver high accuracy, with ease of operation and maintenance.
Features:
- Shoe Centreless & Magnetic Chucking System
- Slide ways coated with 'TURCITE - B'
- Centralized Lubrication System
