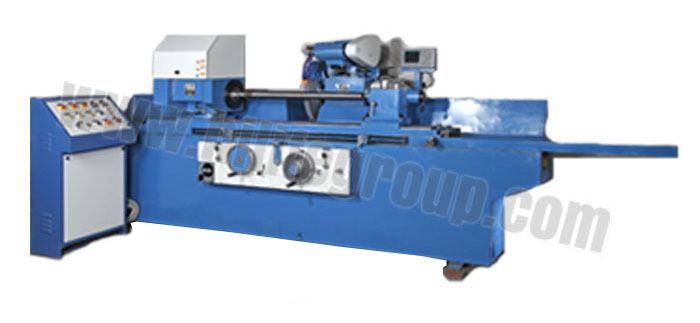

External / OD Grinding Machine - Heavy Duty

OPTIONAL:

  • Internal Grinding Attachment
  • Automatic Plunge & Traverse Grinding Cycle
  • Wheelhead spindle with Anti Friction bearings.
  • Inprocess gauging system

Specifications

SPECIFICATIONS:
Max. Grinding Diameter mm 300
Centre Height mm 200 / 250
Swing Diameter mm 395 / 495
Max. weight on Live spindle kg 60
Max. Grinding Length mm 800 / 1000 / 1200 / 1500
Grinding Wheel Dia. mm 400 / 500
Grinding wheel width mm 50 / 63
Workhead centre MT 5
Tailstock centre MT 5

Highlights:

  • "HI-LIFE" External Grinding Machines - Heavy Duty are of robust design and for heavy load applications especially on Live spindle grinding.
  • These machines are with high power, and guarantee outstanding accuracy.

Features:

  • Heavy duty Workhead with Antifriction bearings for heavy load on live spindle
  • Slide ways coated with 'TURCITE-B'
  • Hydrodynamic bearings for wheel spindle
  • Centralized Lubrication System
